Migrate Gen1 to Gen2 VMs on Azure

7 Min. Read

You have an existing Azure VM with Generation 1 and you want to migrate it to Generation 2 to get the benefits of the latest security features offered by the Azure platform. Generation 2 VMs use the new UEFI-based boot architecture rather than the BIOS-based architecture used by generation 1 VMs.

In this article, we will show you how to migrate Gen1 to Gen2 VMs on Azure.

Introduction

Azure offers trusted launch as a seamless way to improve the security of generation 2 VMs. Trusted Launch is now generally available which protects against advanced and persistent attack techniques. The trusted launch is composed of several, coordinated infrastructure technologies that can be enabled independently. Each technology provides another layer of defense against sophisticated threats.

Generation 2 VMs support key features that aren’t supported in generation 1 VMs. These features include increased memory, Intel Software Guard Extensions (Intel SGX), and virtualized persistent memory (vPMEM). Generation 2 VMs running on-premises have some features that aren’t supported in Azure yet.

Generation 2 VMs use the new UEFI-based boot architecture rather than the BIOS-based architecture used by generation 1 VMs. Compared to generation 1 VMs, generation 2 VMs might have improved boot and installation times.

> For more information about Generation 1 vs. Generation 2 VMs, please read the full comparison for features and capabilities.

In this article, we will show you how to migrate an existing Azure (Windows) VM from Generation 1 to Generation 2 VM with the recovery partition still enabled. The same steps will apply whether you are using a standard Azure VM (Windows Server 2012 and later) or an Azure Virtual Desktop (AVD) golden image (Windows 10 Pro/Enterprise and later).

Prerequisites

To follow this article, you need to have the following:

1) Azure subscription – If you don’t have an Azure subscription, you can create a free one here.

2) Azure Generation 1 VM, please check the quick start guide to create a Windows virtual machine in the Azure portal.

3) Azure Generation 2 VM SKU, please check the supported VM sizes listed here.

4) Temporary Azure VM for the migration (Gen1 or Gen2).

Note: Depending on how you delete a VM, it may only delete the VM resource, not the networking and disk resources. Microsoft has added a new capability where you can change the default settings for what other resources are deleted when you delete a VM (OS Disk, Data Disks, and Network Interfaces). By default, the disks are marked to be deleted, please make sure to unselect the disks and not delete them when you delete a VM.

Assuming you have already an existing Gen1 VM, take the following steps:

***Before you proceed with the steps described below, please make sure you have a VALID BACKUP!!! Please note that this process will require downtime, so you need to plan.

Migrate Gen1 to Gen2 VMs on Azure

The high-level steps involved in the migration plan are the following:

1) Disable the Windows Recovery Environment (Windows RE) on the Gen1 VM.

2) Create a new temporary Azure Gen2 VM.

3) Create or use an existing Azure VM to migrate.

4) Capture and apply the image.

5) Create a new Gen2 VM or Swap the OS disk of an existing Gen 2 VM.

6) Enable the Windows Recovery Environment.

For this example, I have an existing Azure Gen1 VM that I want to migrate. As shown in the figure below, I have opened the System Information (msinfo32) to show the BIOS Mode is Legacy.

BIOS Mode: Legacy
BIOS Mode: Legacy

I have also created a text file and saved it on the Gen1 VM called (AzureVMGen1-Gen2) to confirm that the file will remain when we migrate the VM to Generation 2.

AzureVMGen1-Gen2
AzureVMGen1-Gen2

And here’s the disk partition layout for the Gen1 VM in Azure. Notice it’s a typical Master Boot Record (MBR) layout.

Migrate Gen1 to Gen2 VMs on Azure 1

I want to emphasize that the process below may NOT be perfect but served its purpose by migrating successfully Generation 1 to Generation 2 Azure virtual machine.

1) Disable the Windows RE on Gen1 VM

In this step, we will boot Gen1 Azure VM that we are planning to migrate and make sure that Windows Recovery Environment is disabled.

This step is required only if your OS is Windows 10 and later and not Windows Server.

Log on to your Gen1 VM and open the command prompt as administrator.

Run the following commands in sequence:

reagentc /info

reagentc /disable

#Windows RE Status must show Disabled
reagentc /info
Windows RE Status: Disabled
Windows RE Status: Disabled

Next, shut down the Generation 1 VM, then create a snapshot of the OSDisk and then create a managed disk from the snapshot because we need to use it in Step 3.

Create a managed disk Gen1 VM
Create a managed disk Gen1 VM

You can also delete the Gen1 VM WITHOUT deleting its Disk.

2) Create a new temporary Azure Gen2 VM

In this step, we will create a new temporary generation 2 VM in Azure to get the OSDisk type layout by Azure.

You can follow the steps described here to create a generation 2 (Gen2) VM in the Azure portal.

***IMP: If you want to create the Gen2 VM with trusted launch enabled, then make sure to follow the steps described here, otherwise, the VM will use the default Security type set to Standard.

Once the VM is created, you can delete the temporary Gen2 VM in Azure WITHOUT deleting the Gen2 Disk, or you can create a snapshot of the OSDisk and then create a managed disk from the snapshot because we need to use it in the next step.

Create a managed disk Gen2 VM
Create a managed disk Gen2 VM

3) Temporary VM for the migration

In this step, we need to use a temporary VM to migrate, you can create a new Azure VM or use an existing VM, the VM must be in the same Azure region as the original Gen1 (Step 1) and Gen2 VM from (Step 2), please do not use the VM from the previous two steps.

The temporary VM used for the migration could be Generation 1 or Generation 2 VM.

Once the new temporary VM is created, you need to make sure it’s Stopped (deallocated).

Next, you need to mount (attach) both the Gen1 Disk from the original VM, as well as the Gen2 Disk from Step 2 as shown in the figure below.

Attach Gen1 and Gen2 Disks
Attach Gen1 and Gen2 Disks

Next, turn on the temporary VM.

In this example, I have the Gen1 Disk mounted with the drive letter W:\ (Windows_Gen1) and the Gen2 Disk mounted with the drive letter Z:\ (Windows_Gen2).

Please note that the Windows_Gen2 volume is a temporary disk, we will format the disk and migrate the data from the Windows_Gen1 W:\ to Z:\ (more on this in a bit).

Migrate Gen1 to Gen2 VMs on Azure 2

Next, we need to mount the Recovery Partition (~450 MB) and the EFI System Partition (~99 MB) from the Gen2 disk.

Recovery/EFI System Partitions
Recovery/EFI System Partitions

First, we will mount the EFI System Partition (the one formatted with FAT32, with no Label, ~99 MB), and assign the letter X:\ using DISKPART.

Map EFI System Partition
Map EFI System Partition

Run the following commands:

Diskpart

list volume

select volume 8
assign letter=X
format quick fs=fat32

Next, we need to mount the Recovery Partition (the one formatted with NTFS, labeled Recovery, ~450 MB), and assign the letter Y:\ using DISKPART.

Map the Recovery Partition
Map the Recovery Partition

Run the following commands:

Diskpart

list volume

select volume 7
assign letter=Y
format quick fs=ntfs label="Recovery"

set id="de94bba4-06d1-4d40-a16a-bfd50179d6ac"
gpt attributes=0x8000000000000001
Format Recovery Partition
Format Recovery Partition

Next, we need to mount the OS partition of the Gen2 Disk, assign the drive letter Z:\, and then format the disk.

Diskpart

list volume
select volume 6

assign letter=Z

format quick fs=ntfs label="Windows_Gen2"
Windows_Gen2 OS Disk
Windows_Gen2 OS Disk

4) Capture and apply the image

At this point, we’re going to “capture” and then “apply” the captured image from the source Windows_Gen1 volume into the Windows partition on the new Windows_Gen2 volume, drive letters W:\ and Z:\ in my walkthrough.

Run the following commands from an elevated command prompt on the temporary VM that we are using for the migration:

Dism /Capture-Image /ImageFile:"C:\Captured.wim" /CaptureDir:W:\ /Name:Captured

This will take some time depending on the size of the Gen1 disk and your storage subsystem performance of the temporary machine in Azure.

Capture Azure Gen1 VM Image
Capture Azure Gen1 VM Image

Once the capture is completed from the source, we need to apply it to the drive letter Z:\ by running this command:

Dism /Apply-Image /ImageFile:"C:\Captured.wim" /ApplyDir:Z:\ /Index:1 /CheckIntegrity

This will take some time depending on the size of the captured image and your storage subsystem performance.

Apply Captured Gen1 Image to Gen2 volume
Apply Captured Gen1 Image to Gen2 volume

Next, we need to configure the EFI System Partition on the target Windows_Gen2 volume. Run the following bcdboot command from an elevated command prompt, where Z:\ is the target Windows partition and X:\ is the target EFI System Partition in my walkthrough.

Z:\Windows\System32\bcdboot Z:\Windows /s X: /f UEFI
Configure the EFI System Partition on the target
Configure the EFI System Partition on the target

5) Create a new Gen2 VM

Last but not least, you need to create a new Gen2 VM or Swap the OS disk of an existing Gen2 VM.

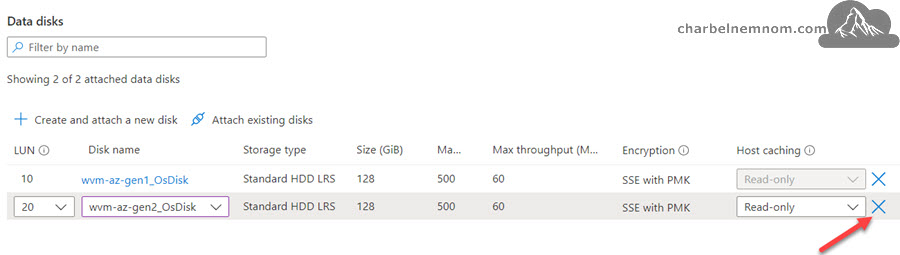

First, detach the Gen2 disk from the temporary VM that we used for the migration.

Migrate Gen1 to Gen2 VMs on Azure 3

Next, create a new Gen2 Azure VM from the OSDisk or Swap the OSDisk of an existing Gen2 VM that you already have. Please note that this option will create the VM with the Security type set to Standard.

Create a new Gen2 Azure VM from the disk
Create a new Gen2 Azure VM from the disk

If you want to deploy the VM with trusted launch enabled, then you need to publish the image and create a VM Image Definition using the Azure Compute Galleries.

For this to work, you need to make sure that you created the new temporary generation 2 VM in Step 2 as a Trusted launch VM.

Create a VM image definition for Trusted Launch
Create a VM image definition for Trusted Launch

Trusted launch allows images to be created and shared through the Azure Compute Gallery (formerly Shared Image Gallery). The image source can be an existing Azure VM which is either generalized or specialized, an existing managed disk or a snapshot, a VHD, or an image version from another gallery. To deploy a Trusted Launch VM from an Azure Compute Gallery image version, please check how to deploy a trusted launch VM from an Azure Compute Gallery image.

Once the new Gen2 VM is created, let’s fire it up and see what happens!

…The good news is that it boots without any issue.

Migrate Gen1 to Gen2 VMs on Azure
Migrate Gen1 to Gen2 VMs on Azure

As shown in the figure below, I have opened the System Information (msinfo32) to show the BIOS Mode is UEFI now. The System Name in my example is (WVM-AZ-GEN1) which proves this is the original VM that I had as Gen1 and now it’s migrated to Gen2.

System Information - UEFI
System Information – UEFI

Let’s take a look at Windows Explorer and Disk Management (diskmgmt.msc) to see. Notice its layout as an EFI System Partition.

Windows Explorer and Disk Management
Windows Explorer and Disk Management

SUCCESS!!! We can see the text file (AzureVMGen1-Gen2) is from our original virtual machine.

6) Enable the Windows RE on Gen2 VM

The last step is to re-enable the Windows Recovery Environment from inside of the Gen2 Windows OS. This step is required only if your OS is Windows 10 and later and not Windows Server.

Re-enabling Windows RE is fairly straightforward.

Log on to your new Gen2 VM and open the command prompt as administrator and run this command:

reagentc /enable
reagentc /info

So that’s it there you have it. Although somewhat involved, that is what it takes to convert an Azure VM workload from Generation 1 to Generation 2. You may, of course, decide that a clean installation may be simpler.

> Learn more about how to protect Generation 2 (Trusted Launch) Azure VM with Azure Backup.

Summary

Your choice to create a generation 1 or generation 2 virtual machine depends on which guest operating system you want to install and the boot method you want to use to deploy the virtual machine. Microsoft recommends that you create a generation 2 virtual machine to take advantage of features like Trusted Launch, and Secure Boot.

You can’t change a virtual machine’s generation after you’ve created it. So, we recommend that you review the considerations as documented by Microsoft, as well as choose the operating system, boot method, and features you want to use before you choose a generation for your Azure VM.

By following the steps described in this article, you can convert and migrate an Azure VM workload from Generation 1 to Generation 2.

Source: I’ve followed the Hyper-V Generation 2 virtual machines by John Howard that helped me to migrate my Azure VM from Gen1 to Gen2.

__
Thank you for reading my blog.

If you have any questions or feedback, please leave a comment.

-Charbel Nemnom-
